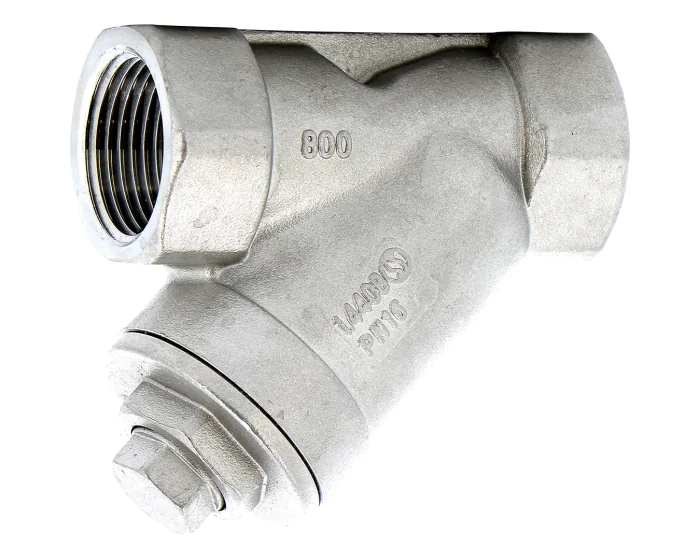

The 230 series Y-strainer consists of a stainless steel body, removable screen, cap with drain, BSP threaded ends. It complies with CE 1935 for food industry.
| Specification | Value |
|---|---|
| DN inches NPS | 1/4'' |
| Option certificate 3.1 | Yes |
| DN metric | 8/13 |
| Bonnet material | Stainless steel ASTM A351 CF8M |
| Mounting direction | Horizontal or vertical |
| Screen material | AISI 304 stainless steel |
| CE risk category | III Module H |
| Accessories for flanges | Stainless steel ASTM A351 CF8M |
| Thread standard | ISO 228-1 |
| Application | Industry |
| DN | DN8 - 1/4'' |
| Face to Face (mm) | 64.0 |
| Fluid | Acids |
| Gasket | PTFE |
| Body material | Stainless steel CF8M (1.4408) |
| PS (bar) | 16 |
| Connections | BSP FF |
| Screen (mesh) | 10/10° |
| TS max (°C) | 200 |
| TS min (°C) | -50 |
| Warranty period | 2 years |
| CE | Yes |
| Filter design | Y |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Stainless steel CF8M (1.4408) 1/4'' | 230002 | S1011203 |
€7.81
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) 3/8'' | 230003 | S1011204 |
€7.81
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) 1/2'' | 230004 | S1011205 |
€7.81
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) 3/4'' | 230005 | S1011206 |
€10.53
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) 1'' | 230006 | S1011207 |
€15.61
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) 1''1/4 | 230007 | S1011208 |
€20.03
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) 1''1/2 | 230008 | S1011209 |
€27.20
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) 2'' | 230009 | S1011210 |
€38.54
(excl. btw)
|
add to cart |
